HTTP
特点
- 无状态
- 通过token、cookie 可解决无状态问题
- 明文传输,不安全
- 对头阻塞
- 一个域名(应该不包括同域不同端口?)可同时建立6个TCP链接,利用此特点(并发请求)可优化http的请求速度
http0.9(草版)
- 优点:tcp可靠
- 特点:纯文本格式、只能使用get请求(响应之后立即关闭请求)
http1.0(完善版)
- 提升:
- 引入header,可传输非文本资源
- 增加:状态码、Post、HEAD等请求方法
- 缺点:
- 建立连接3次握手、慢启动、对头阻塞、(断开连接未通知到客户端导致)端口占用过多、串行问题
http1.1(优化版)
- 提升:
- keep-alive 复用连接
- 管线化:解决串行问题,可并发请求。
- 1个域名可以创建多个连接(chrome 6个):6个不够可通过使用多域名,拓展并发请求数
- 缓存
- 缺点:
- http队头阻塞:虽然可以并发请求,但是返回给客户端还是得串行队头依次返回,否则就会导致数据错乱(比如:请求css 返回js,请求js返回css等)
- 纯文本,容易引发歧义(比如:大小写问题)
http2(优化版升级)
- 提升:
- 使用HPack算法压缩头部,减少数据传输量
- 运行服务器主动推送消息给客户端
- 二进制方式传输,解决歧义问题
- 数据传输采用多路复用,让多个请求合并在一个tcp连接内
- 缺点:
- tcp缺点(对头阻塞)
http3
- 提升:
- 基于UDP的QUIC协议,彻底解决TCP对头阻塞问题
安全
Cookie

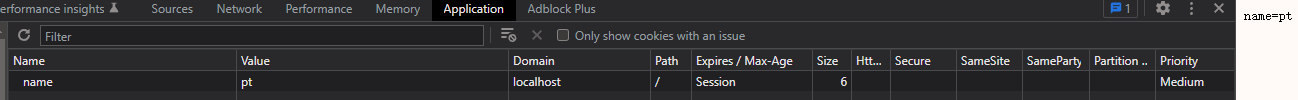

正常使用:path 默认为/
jsxconst http = require('http'); const server = http.createServer((req, res) => { if (req.url === '/write') { res.setHeader('Set-Cookie', "name=pt;"); return res.end("write ok"); } if (req.url === '/read') { return res.end(req.headers['cookie'] ?? 'empty'); } res.end("not found"); }); server.listen(3000, () => { console.log("start success port:3000"); });

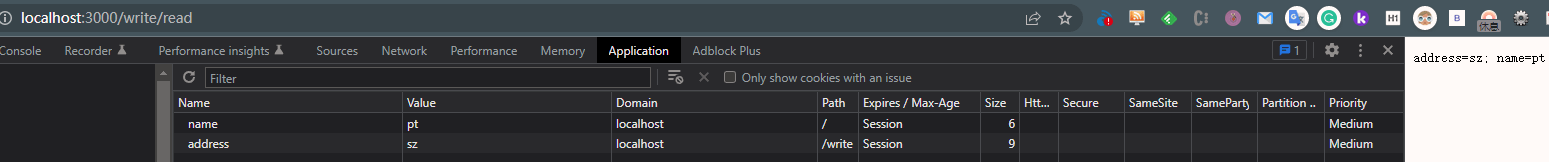

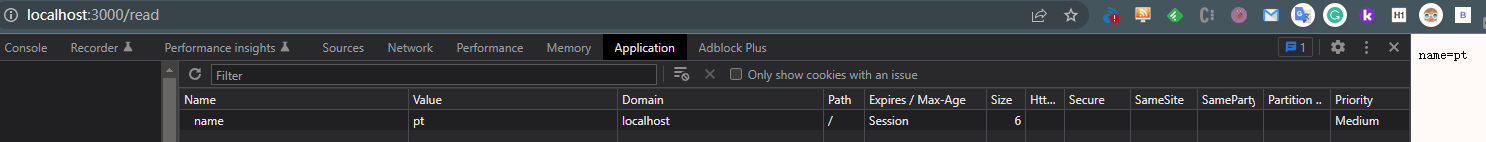

path
示例
jsxconst http = require('http'); /* 2. 写path */ const server = http.createServer((req, res) => { res.setCookie = function (name, value, options = {}) { let optionsArr = []; if (options.path) { optionsArr.push(`path=${options.path}`) } let str = `${name} = ${value}; ${optionsArr.join('; ')} `; res.setHeader('Set-Cookie', str); } //1.写/下(默认) if (req.url === '/write') { res.setCookie("name", "pt"); return res.end("write ok"); } //2.写/write下 if (req.url === '/write/write') { res.setCookie("address", "sz", { path: "/write" }); return res.end("write ok"); } //仅能读取"/"目录下的cookie if (req.url === '/read') { return res.end(req.headers['cookie'] ?? 'empty'); } // "/" 和 "/write" 目录下的cookie 都能读取到 if (req.url === '/write/read') { return res.end(req.headers['cookie'] ?? 'empty'); } res.end("not found"); }); server.listen(3000, () => { console.log("start success port:3000"); });

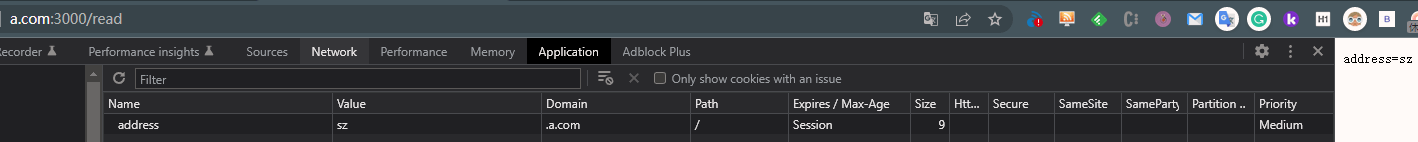

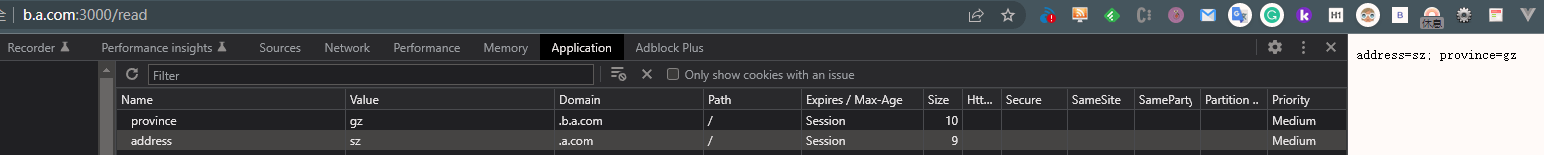

domain
示例
jsxconst http = require('http'); /* 3. 写domain */ const server = http.createServer((req, res) => { res.setCookie = function (name, value, options = {}) { let optionsArr = []; if (options.domain) { optionsArr.push(`domain=${options.domain}`) } let str = `${name} = ${value}; ${optionsArr.join('; ')} `; res.setHeader('Set-Cookie', str); } if (req.url === '/write') { let host = req.headers['host']; if (host === 'a.com:3000') { res.setCookie("address", "sz", { domain: ".a.com" }); } else if (host === 'b.a.com:3000') { res.setCookie("province", "gz", { domain: ".b.a.com" }); } else { res.setCookie("name", "pt"); } return res.end("write ok"); } //说明: //1.a.com 只能读取a.com 下的cookie,而b.a.com 既能读取自己域名下的cookie又能读取父域名下的cookie //2.不是同域下的cookie访问不到 //3.未设置过期,数据会一直缓存起来 if (req.url === '/read') { return res.end(req.headers['cookie'] ?? 'empty'); } res.end("not found"); }); server.listen(3000, () => { console.log("start success port:3000"); });
提示:a.com、b.a.com 可直接通过本地host文件配置即可,host位置:C:\Windows\System32\drivers\etc
maxAage
示例
jsxconst http = require('http'); /* 4. Max-Age */ const server = http.createServer((req, res) => { res.setCookie = function (name, value, options = {}) { let optionsArr = []; if (options.maxAge) { optionsArr.push(`Max-Age=${options.maxAge}`) } if (options.expires) { optionsArr.push(`expires=${options.expires}`); } let str = `${name} = ${value}; ${optionsArr.join('; ')} `; console.log("cookie:", str); res.setHeader('Set-Cookie', str); } if (req.url === '/write') { //延迟10s res.setCookie("name", "pt", { maxAge: 10 }); return res.end("write ok"); } if (req.url === '/write-expires') { let date = new Date(); //延迟10s date.setTime(date.getTime() + 10 * 1000); //能使用 toUTCString\toGMTString(弃用) 不能使用:toDateString、toString、toISOString //utc: 协调世界时,最重要的世界标准时间。由于可能网站在不同国家使用,不能按照本地时间来算,所以为了简单统一直接采用世界标准时间算 res.setCookie("name", "pt", { expires: date.toUTCString() }); return res.end("write ok"); } if (req.url === '/read') { return res.end(req.headers['cookie'] ?? 'empty'); } res.end("not found"); }); server.listen(3000, () => { console.log("start success port:3000"); });

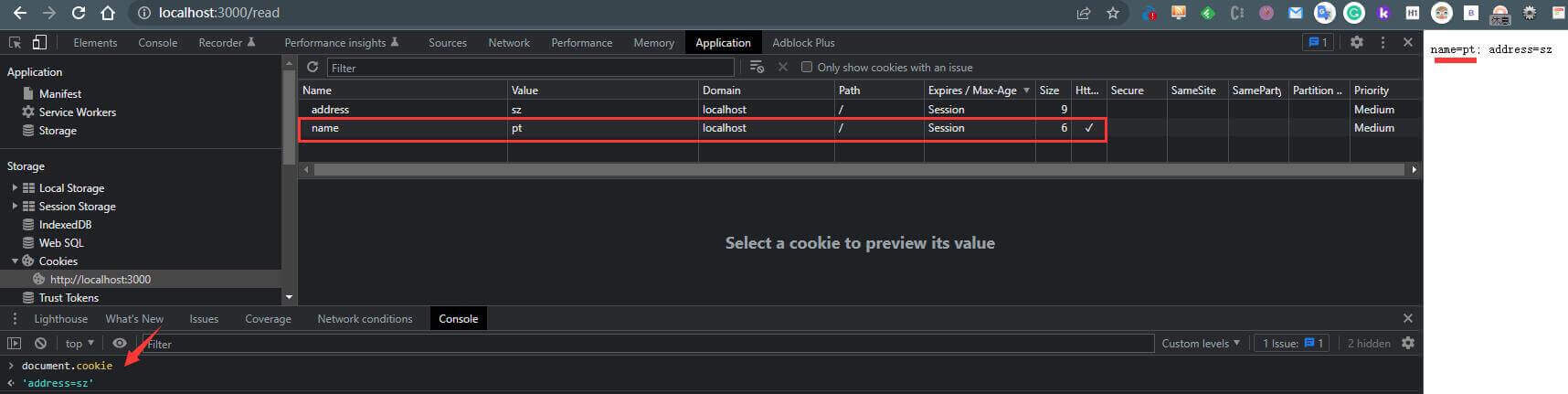

httpOnly
示例
jsxconst http = require('http'); /* 5. httpOnly */ const server = http.createServer((req, res) => { let arr = []; res.setCookie = function (name, value, options = {}) { let optionsArr = []; if (options.httpOnly) { optionsArr.push(`httpOnly=${options.httpOnly}`) } let str = `${name} = ${value}; ${optionsArr.join('; ')} `; arr.push(str); console.log("cookie:", arr); res.setHeader('Set-Cookie', arr); } if (req.url === '/write') { //说明:设置成httpOnly后,前端就无法通过代码获取(目的:为了信息安全) res.setCookie("name", "pt", { httpOnly: true }); res.setCookie("address", "sz"); return res.end("write ok"); } if (req.url === '/read') { return res.end(req.headers['cookie'] ?? 'empty'); } res.end("not found"); }); server.listen(3000, () => { console.log("start success port:3000"); });
signed
示例
jsxconst http = require('http'); const { createHmac } = require('crypto'); const secretKey = "123"; const qs = require("querystring"); function sign(item) { //说明:不能用base64,需要改用base64url,[+,/,=] 转成url规范字符 return createHmac('sha256', secretKey).update(JSON.stringify(item)).digest("base64url"); } /* 6. sign */ const server = http.createServer((req, res) => { let arr = []; res.setCookie = function (name, value, options = {}) { let optionsArr = []; if (options.signed) { let signValue = sign(`${name}=${value}`); console.log(`signValue:${signValue}`); arr.push(`${name}.sign=${signValue}`) } let str = `${name} = ${value}; ${optionsArr.join('; ')} `; arr.push(str); console.log("cookie:", arr); res.setHeader('Set-Cookie', arr); } res.getCookie = function (name, options = {}) { let cookie = req.headers.cookie; //! 说明:将a=b; c=d 用"; "分割拆成对象形式, 变成{a:b,c:d}形式方便使用 let cookieObj = qs.parse(cookie, '; '); console.log("cookieObj:", cookieObj); let value = cookieObj[name]; if (options.signed && value) { //! 说明:判断之前的signValue和新生成的signValue是否一样,如果一样说明没有被篡改,否则就是被篡改后的 let signPreValue = cookieObj[`${name}.sign`]; let signNewValue = sign(`${name}=${value}`); console.log("signPreValue:", signPreValue); console.log("signNewValue:", signNewValue); if (signPreValue === signNewValue) { return cookieObj[name] ?? "empty"; } else { return `invalid cookie name:${name} !` } } else { return value ?? "empty"; } } if (req.url === '/write') { res.setCookie("name", "pt", { signed: true }); return res.end("write ok"); } if (req.url === '/read') { let ret = res.getCookie('name', { signed: true }) ?? "empty" return res.end(ret); } res.end("not found"); }); server.listen(3000, () => { console.log("start success port:3000"); });
Http 数据格式

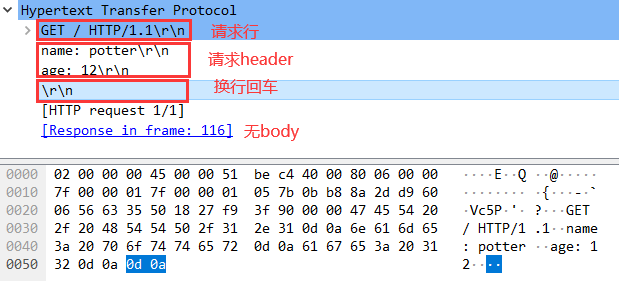

请求数据结构
!["img"](https://cdn.jsdelivr.net/gh/yxw007/BlogPicBed@master//img/20230313112830.png)

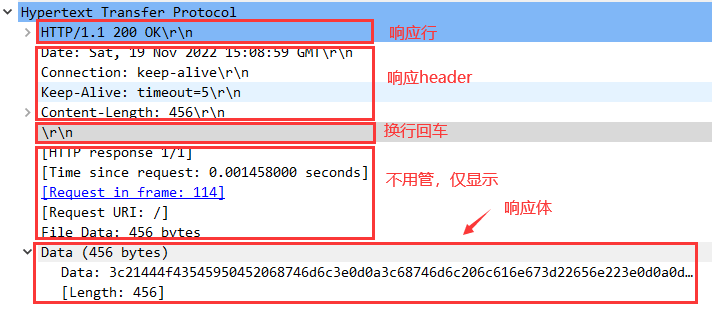

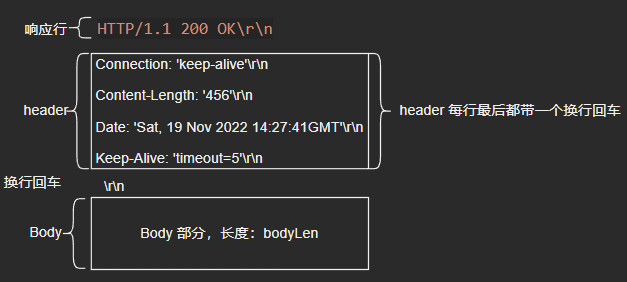

响应数据结构
